Description

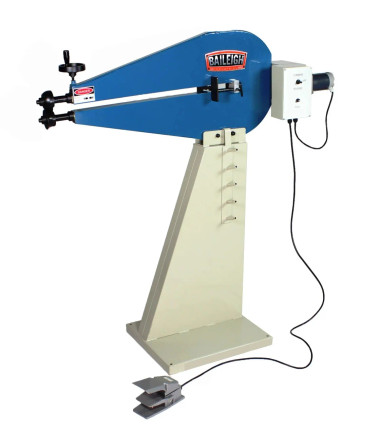

Baileigh BR-18E-24 Power Bead Roller
Built with foot pedal controls, the BR-18E-24 electric bead roller machine leaves your hands free to work the material. An industrial-grade motor, gearbox, and plate steel frame ensure accuracy. This power bead roller is recommended for fabricators or shops looking for a fast and easy way to make beads and profiles.
Features
- 16-gauge mild steel and 14-gauge aluminum capacity.
- 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
- Runs on 110-volt single-phase power so you can plug it in almost anywhere with up to 30 rpm feed rate, which amounts to 280” per minute.
- Intuitive variable-speed foot pedal design: press harder to roll faster and apply less force for slower, more careful forming.
- Adjustable top roll lets you set your desired forming depth.
- Robust steel floor stand includes a rack for roll sets – Rolls can run forward or in reverse by just flipping the switch to change direction.
- Depth stop within the throat helps you make straight, repeatable beads.
- ¾” shaft diameter is compatible with most commercial roll sets.
- All moving parts turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
- Fully welded plate steel frame keeps the bead roller rigid, so it makes quality profiles over many years of use.
Specifications
| Model Number | BR-18E-24 |
| Adjustable Depth Stop | Included |
| Input Power | 110V |
| Max Thickness Mild Steel (Gauge) | 16 |
| Roll Holder | Yes |
| Shipping Dimensions (L x W x H) (In.) | 50 x 23 x 23 |
| Throat Depth (In.) | 24″ |
| Roll Holder | Included |
| Weight (Lbs.) | 200 |
*Specifications subject to change without notice.
