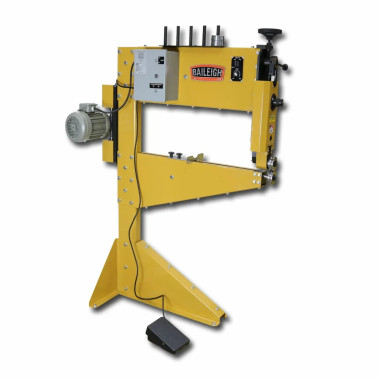

Baileigh BR-16E-36 Bead Roller
Made of rigid steel, this American-Made Bead Roller combines all the best features in one package. Crafted with excellence, it offers a quick-release top die that allows for easy opening and closing without altering the depth pressure. The adjustable shaft and variable-speed pedal provide precise control, while depth stops ensure consistent and repeatable beads. With its heavy steel frame, this bead roller guarantees accuracy and prevents flex, making it a reliable tool for years to come. Experience the power of versatility and efficiency with our exceptional bead roller, designed to elevate your craftsmanship.
Features
- 16 gauge mild steel maximum capacity with a 36” throat depth enables you to work on the middle of large panels.
- Industrial .5 hp motor runs on 110-volt power. Plug it into any household outlet.
- Both rolls are driven. Chain drive on the top roll prevents slippage.
- Variable-speed foot pedal lets you slow down your feed rate for more delicate work.
- You can change the RPM of the rolls in real time by turning the dial on the side or lock the rolls at a constant speed.
- Rollers can run forward or in reverse, so you can go over a pattern as needed.
- Left- and right-hand controls are the same on both sides of the machine.
- Adjust the forming depth by turning a hand wheel just above the working area.
- You can begin or end a design in the middle of the panel and not worry if the depth is set correctly.
- Made in the USA.
Specifications
| Model Number | BR-16E-36 |
| Aluminum Capacity (Gauge) | 14 |
| Input Power | 110 volt |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | 1/2 HP |
| Roll Holder | No |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 70 |
| Throat Depth (In.) | 36″ |
| Weight (Lbs.) | 600 |
*Specifications subject to change without notice.
