Description

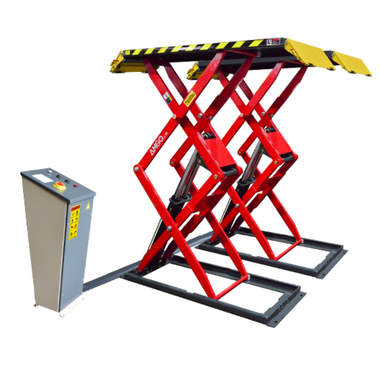

AMGO Hydraulics XL-7 7000 Lbs Low Profile Scissor Lift
AMGO XL-7 features both hydraulic and mechanical locks, ensuring it the safest lift in its class. This full rise lift works great for raising vehicle high enough to work underneath, and boasts a low profile design of only 4 1/2”. With a straightforward installation and a No-Service-Required build, it offers ease of use and can lift up to 7,000 lbs.
Features
- 24V control system for safety operation
- 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms
- Hydraulic cylinders built with hose burst valves for safety protection
- Both mechanical and hydraulic locking system. This makes it one of the safest small scissors lift in the world
- A safety stop device at the height of 11 7/8″, both control buttons are needed to lower the lift to ground, tone alarm for added safety.
Specifications
| Model | XL-7 | |
| Lifting Capacity | 7,000 lbs | |
| Lifting Time | 50 s | |
| Max. Lifting Height | A | 78 3/4″ |
| Minimum Height | 4 5/8″ | |
| Overall Length | B | 80″ |
| Runway Length | C | 57 5/8″ |
| Overall Width | D | 76 3/4″ |
| Width Between Runways | E | 29 1/2″ |
| Gross Weight | 1,982 Ibs | |
| Motor | 2.0HP, 220V / 60Hz, Single phase |
