Description

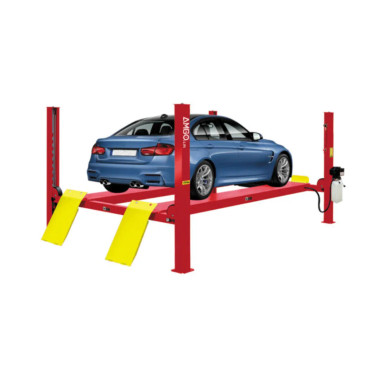

AMGO Hydraulics PRO-12SX 12000 Lbs 4-Post Lift
The PRO-12SX is a perfect lift to work on regular everyday vehicles up to 12,000lbs. With air-released safety locks for convenient operation and consistent reliability, this lift will more than meet your everyday service needs.
Features
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
Optional Rolling Jacks Sold Separately
- J6H 6,000lbs manual control
- J6A 6,000lbs pneumatic pump
More choices Sold Separately
- Optional led lights: No. 40103
- Optional extension kit: No. 40903
- Optional air line kit: No. 40102
Specifications
| Model | PRO-12SX | |
| Lifting Capacity | 12,000 lbs | |
| Lifting Time | 45 s | |
| Overall Length (Inc Ramps) | A | 232 11/16″ |
| Overall Length (No Ramps) | B | 196 3/4″ |
| Overall Width | C | 132 1/8″ |
| Width Between Columns | D | 118 1/8″ |
| Max.Lifting Height | E | 74″ |
| Max. Lock Height to top of runway | 70 7/8″ | |
| Overall Height | F | 86″ |
| Minimum Height | G | 6 5/8″ (170 mm) |
| Max.Underneath Height | H | 68 1/2″ |
| Max. Lock Underneath runway | 65 3/8″ | |
| Drive-Thru Clearance | I | 104 3/16″ |
| Width Between Runways | J | 43 1/4″ Min. 3 3/8″ Max. 53 3/4″ |
| Outside Edge of Runways | K | 83 1/4″ Min. 43 3/8″ Max. 93 3/4″ |
| Gross Weight | 2,251 lbs | |
| Motor | 2,0HP, 220V / 60Hz, Single Phase |
