Description

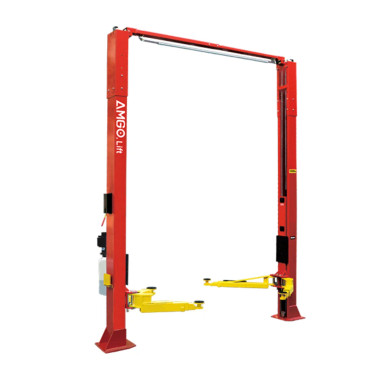

AMGO Hydraulics OHX-10H 10000 Lbs Asymmetric 2-post Lift
AMGO OHX-10H is designed for extremely high lifting up to a maximum of 87 3/4″, offering greater comfort when working beneath a vehicle. It offers two height settings, reaching up to 14 ft, and is fitted with extremely long carriages, ensuring strong performance, stability, and minimal maintenance. This 10,000 lbs capacity lift is the ideal choice to fulfill your professional lifting requirements.
Features
- Lifting capacity: 10,000 lbs.
- Dual hydraulic direct-drived cylinders made on high standard.
- The Super Asymmetric arms can load the vehicle in either a symmetrical or an asymmetrical way, ensuring adequate door clearance.
- Single-point manual safety lock release, simultaneously unlock both columns from one side.
- Clear-floor design, provide unobstructed floor use.
- Overhead safety shut-off device prevents vehicle damage.
- Standard two height settings accommodate varying ceiling heights.
- Self-lubricating UHMW polyethylene sliders.
- Automatic arms restraint.
- Areo sync cables come as standard.
- Comes with detachable toe guard and tool tray.
- Standard double-screw rubber pad ( pin dia 1/2” ) with 3” extension adapters.
Specifications
| Model | OHX-10H | |
| Lifting Capacity | 10,000 lbs | |
| Lifting Time | 63 s | |
| Max. Lifting Height: (w/o extension adapter) | A | 78 3/4″~ 80 5/8″ |
| Max. Lifting Height: (w/ extension adapter) | 81 3/4″~ 83 5/8″ | |
| Max. Lock Height: ( w/o extension adapter) | 76 7/8″~ 78 3/4″ | |
| Max. Lock Height: ( w/ extension adapter) | 79 7/8″~ 81 3/4″ | |
| Overall Height: (Low setting) | B | 157″ |
| Overall Height: (High setting) | 167″ 3/16″ | |
| Overall Width | C | 134 15/16″~ 140 7/8″ |
| Drive Thru Clearance | D | 99 13/16″~105 11/16″ |
| Width Between Columns | E | 112 19/32″ ~ 118 1/2″ |
| Minimum Pad Height | F | 3 3/4″ |
| Gross Weight | 1,739 lbs | |
| Motor | 2.0HP, 220V 60Hz Single phase |
