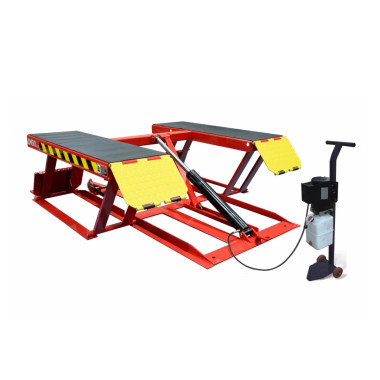

AMGO Hydraulics LR06 Low-Rise Portable Lift 6,000 lbs

Description

AMGO Hydraulics LR06 Low-Rise Portable Lift 6,000 lbs

The Portable low-rise lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business.

Provides good working height for tires, brakes and body repairs.

Features

• Multiple safety locks with mechanical release.
• Portable, Easy to move with power unit stand.
• Multi-points mechanical locks with gravitational lock release mechanism.
• High density rubber pads included.

Specifications

Model   LR06  Lifting Capacity   6,000 lbs  Lifting Time   45 s  Max. Lifting Height A  23 5/8″ (600 mm)  Minimum Height  4 1/8″ (105 mm)  Runway Length B  53 1/4″ (1352 mm)  Overall Width C  70″ (1780 mm)  Width Between Runways D  34 1/8″ (868 mm)  Overall Length E  76 1/4″ (1938 mm)  Gross Weight   849 lbs (385 kg)  Motor   1.0HP, 110V/60Hz, single phase

Downloads

 Flyer

Manual
