Description

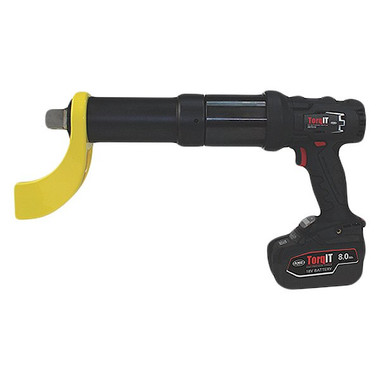

AME 67510-E6 1000 ft. lbs. TorqIT Torque Wrench w/ 6 in. Extension
TorqIT 1″ Drive Detent Pin Anvil 18 V Cordless Impact Wrench Bare Tool with 6″ Nose Extension (67510-E6) by AME International. This product is made of high-quality materials to serve you for years to come. Designed using state-of-the-art technology and with customers in mind. It will meet your needs and deliver great quality at an affordable cost.
Features
- Durable and Portable Precision Torque.
- Lithium Ion 8.0 Ah Rechargeable Battery.
- Full Charge in under 60 minutes.
- Every Unit Calibrated In ISO 17025 Laboratory
- Includes 6″ Nose Extension.
- 1″ Drive.
- 240 – 1,000 ft/lbs.
- Accuracy of +/- 5%
- Weight: 16.5 lbs (7.5 kg).
- Made in the USA.
Includes:
- (1) 1″ Drive Powered Torque Wrench.
- (1) 6″ Nose Extension.
Specifications
| Model | 67510-E6 |
| Square Drive | 3/4” |
| Min. Torque (ft lb) | 240 |
| Max Torque (ft lb) | 1000 |
| Min. Torque (Nm) | 335 |
| Max Torque (Nm) | 1355 |
| Height A (W/ Battery) (In) | 10.40” |
| Height A (W/ Battery) (Mm) | 265 |
| Length C (In) | 15.64” |
| Length C (Mm) | 397 |
| Diameter D (In) | 2.62” |
| Diameter D (Mm) | 67 |
| Weight (W/O Reaction Arm & Battery)(Lbs) | 13.5 |
| Weight (W/O Reaction Arm & Battery)(Kg) | 6.1 |
| Weight (W/ Reaction Arm & Battery)(Lbs) | 16.5 |
| Weight (W/Arm & Battery)(Lbs) | 7.5 |
| RPM At Min. Torque | 2 |
| RPM At Max Torque | 8 |
