Description

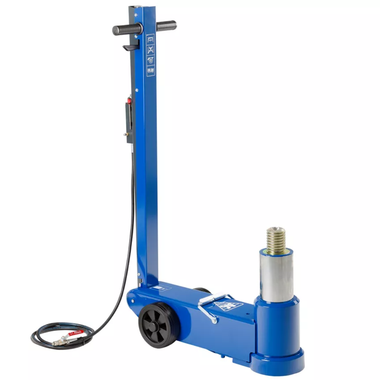

AME 65-1AP Air Hydraulic Jack 65 Ton Max Height 16.93″ Aircraft Jack
Air hydraulic aircraft jack.
Features
- Compact and slim design for easy operation and manoeuvrability.
- Telescopic handle increases the reach under the aircraft to 85.43 in and offers easy and safe operation.
- The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart.
- Fitted with extension screw (3.15 in) for optimum use of the stroke.
- Rapid ram retraction without load.
- Safety features include manual lowering valve, safety overload valve and dead mans release.
- Designed and manufactured according to the aircraft standards: EN1915:2001 and EN12312:2005.
Suitable for the following airplanes:
Specifications
| Model | 65-1AP |
| Capacity | 143,000 lbs – 65 T |
| Min. height | 10.63” – 430 mm |
| Max. height | 16.93” – 430 mm |
| Frame length | 31.89” – 810 mm |
| Handle length | 37.40 – 53.54” / 950 -1360 mm |
| Width | 7.87” – 200 mm |
| Width (with wheels) | 12.20” – 310 mm |
| Air supply | 9 – 12 bar / 130 – 174 psi |
| Air consumption | 350 l/min |
| Weight | 187 lbs – 85 Kg |
