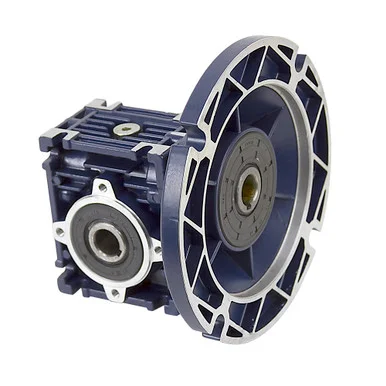

Aluminum Right Angle Worm Gear Reducer, 30 mm C.D., 30/1, 56C Input Flange, Hollow Bore Output Worldwide CALM30-30/1-56C

Description

Product

Aluminum Right Angle Worm Gear Reducer, 30 mm C.D., 30/1, 56C Input Flange, Hollow Bore Output
Brand new, World Wide Electric aluminum worm gear reducer. Aluminum alloy housings. Gearbox flanges are designed to accept NEMA C-Face electric motors. Pre-filled with synthetic oil. Two bearings on the input and output shafts, double lip oil seals, epoxy paint inside and outside for rust prevention, and hollow output bores to accept plug-in output shafts (sold separately).

SPECIFICATIONS

• BrandWorld Wide Electric
• Model NumberCALM30-30/1-56C
• Box Size30 mm Center Distance
• Gear Ratio30:1
• Output RPM @ 1750 RPM Input58 RPM
• Input Hp (1.0 S.F.)0.25 Hp Max
• Output Torque177 in.-lb. Max
• Over-Hung Load226 lbs. Max
• Output Shaft Thrust Load45 lbs. Max
• Efficiency66 %
• Motor Mount56C
• Input Bore5/8&QUOT keyed, 3/16&QUOT keyway
• Output Bore5/8&QUOTkeyed, 3/16&QUOTkeyway
• Top & Bottom Mount54mm x 44mm
• Back Mount71mm x 44mm
• Overall Size4.62&QUOT x 6.5&QUOT x 6.5&QUOT
• Shpg.3 lbs.
