9.76 cu in Hydraulic Motor Hydro Custom BM1H-FBADADB

Description

Product

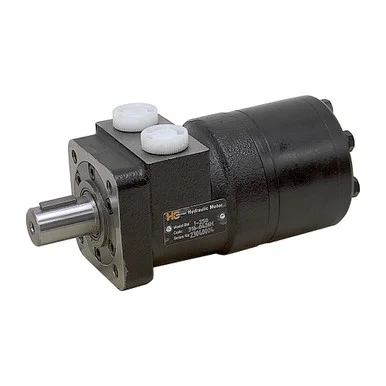

9.76 cu in HYDRAULIC MOTOR HYDRO CUSTOM BM1H-FBADADB
Brand new, Hydro Custom BM1 series hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn H series and Danfoss DH series motors.
SPECIFICATIONS

• BrandHydro Custom
• ModelBM1H-FBADADB
• Manufacturer Part NumberCUM 316-0424H
• Displacement9.76 cu in
• Motor TypeGerolor
• RotationReversible
• Pressure
  2030 PSI cont.
  2537 PSI int.
• Torque
  2166 in-lbs. cont.
  3014 in-lbs. int.
• Speed
  360 RPM cont.
  430 RPM int.
• Flow
  15 GPM cont.
  20 GPM int.
• Mount4 bolts on 3.25″ B.C.
• Shaft1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
• Ports1/2″ NPT
• Case DrainSAE 4
• Size8.212″ x 3.622″ x 3.622″
• Shpg.18 lbs.
