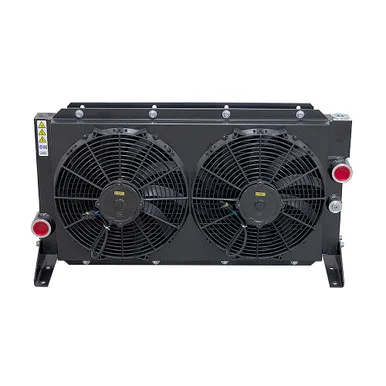

80 GPM AKG DCS45-12-BP65 Oil Cooler w/12 Volt DC Fan and Internal Bypass
Brand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections, with internal pressure bypass and mounting tabs.
SPECIFICATIONS
- ManufacturerAKG
- Model NumberDCS45-12-BP65
- AKG Item 1103628400
- Pressure263 PSI max.
- Temperature263 F° max.
- ConstructionAluminum
- Flow80 GPM
- Fan Motor Voltage12 Volts DC
- Amps17
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR)75634 - Airflow DirectionPull
- Port SizeSAE 20
- Drain/Temperature Sensor Port SizeSAE 8
- Mount Eight 7/16″ slotted holes on 7.87″ x 17.21″ centers
- Overall Depth (in.)7.2
- Overall Width (in.)33.46
- Overall Height (in.)18.31
- Shpg.72 lbs.
| Temperature Control Switches | |
|---|---|
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
