8″ x 2″ Rigid Steel Plate Caster WC6680R-01-STL

Description

Product

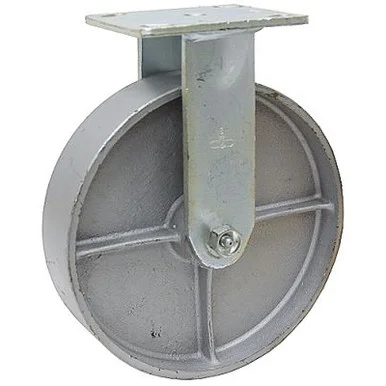

8″ X 2″ RIGID STEEL PLATE CASTER
Brand new, WC6680R-01-STL steel wheel rigid plate caster. Case hardened double ball raceways provide extra capacity and durability. Top plate and legs are made out of 1/4″ cold forged steel and corrosion-resistant zinc plated finish. 5/8″ nut and bolt kingpin and 2-1/2″ for spacing with 1/2″ zerk axle and lock nut. Wheel made from premium cast iron or otherwise know as semi-steel. Resistant to abrasions or applications that may tear up soft tread wheels. Made for medium to high weight and extreme temperature applications.

SPECIFICATIONS

• ModelWC6680R-01-STL
• Wheel Diameter 8″
• Wheel Width2″
• Load Capacity900 lbs.
• Mounting height9-1/2″
• Top Plate4″ x 4-1/2″ x 1/4″ thick
• Mount 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ centers
• Bolt Holes3/8″
• Wheel Tread MaterialCast Iron
• Wheel Tread ColorGray
• Wheel Tread Durometer130-150 Brinell
• Wheel Core MaterialCast iron
• Wheel BearingRoller
• Wheel Temperature Rating-40ºF to 800ºF
• Shpg. 14 lbs.
