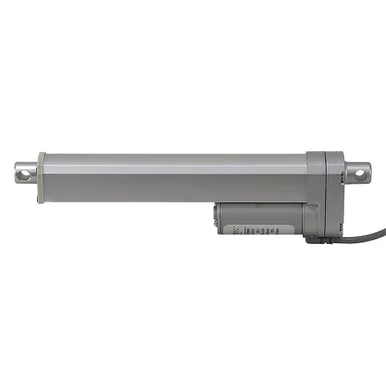

12 VOLT DC 225 LB. LINEAR ACTUATOR
Brand new, GLIDEFORCE model MD12 medium-duty linear actuator. Simple two wire hookup. Metal housing is water resistant and sealed against dust. Permanent magnet motor. Preset limit switches at both ends of stroke.
SPECIFICATIONS
- BrandGlideforce
- Model NumberMD122008
- Stroke 200 mm (7.87″)
- Voltage 12 Volt DC
- Push/Pull Rating
Dynamic 225 lbs. max - Extension Speed
No Load 0.58 in/sec
Max Load 0.41 in/sec - Amps
No Load 1.1
Full Load 4.6 - Gear Ratio20:1
- Duty 25%
- Operational Temperature Range
-13° F to +149° F - Enclosure IP65
- Pin Holes 10mm (0.394″)
- Retracted Length 12.01″
- Shaft Dia. 20mm (0.787″)
- Size 12.76″ x 3.43″ x 1.77″ (324mm x 87mm x 45mm)
- Shpg. 5 lbs.
| Mounting Brackets | |
|---|---|
| Linear Actuator Mounting Bracket Medium Duty Aluminum GlideForce LA-MD-BRACKET | 501068 |
| Linear Actuator Mounting Bracket Medium Duty Steel GlideForce LA-MD-BRKT-S | 501067 |
| Compatible Polarity Reversing Switches | |
|---|---|
| DPDT-CO 30 Amp Maintained Toggle Switch GlideForce SWT-TOG-4W | 500725 |
| DPDT-CO 30 Amp Momentary Toggle Switch GlideForce SWT-TOG-MOM-4W | 500726 |
