Description
Product

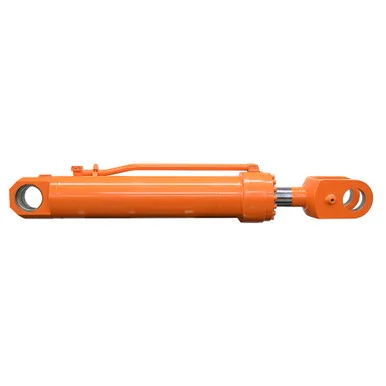

7.48″(190mm) x 35″(890mm) x 4.13″(105mm) DA HYD CYL
Unused old inventory. DOOSAN H550 right hand double acting hydraulic lift cylinder. Numbers on cylinder 400321-00094A.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.48″(190mm) x 35″(890mm)
- Barrel Thickness 0.625″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 4.13″(105mm)
|
- Ports 4 bolt 1″ code 62 flange size 16
- Retracted Length65″
- Gland Face to Rod Pin Center 16.125″
- Shpg.807 lbs.
|
END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 9.06″
- Inside Width 4.96″
- Throat Depth 9.75″
- Pin Hole 4.73″(120mm)
|
- Base End Tang
- Width 5.89″
- Pin-Center-To-Tang-End 3.94″
- Pin Hole4.73″(120mm)
|
