6.24″(158mm) x 7.125″(181mm) x 2.75″(70mm) Double Acting Hydraulic Cylinder Hyundai 31B-200010

6.24″(158mm) x 7.125″(181mm) x 2.75″(70mm) Double Acting Hydraulic Cylinder Hyundai 31B-200010

Original price was: $99.99.Current price is: $30.00.

SKU: IVJRV504075 Category:

Description

Product

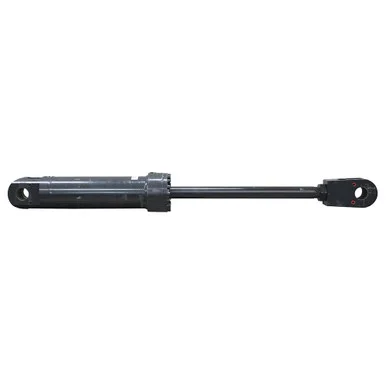

6.24″(158mm) x 7.125″(181mm) x 2.75″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. HYUNDAI numbers on cylinder 31LB-200010.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.24″(158mm) x 7.125″(181mm)
  • Barrel Thickness 0.526″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″(70mm)
  • Ports BSPP 12
  • Retracted Length 74″
  • Gland Face to Rod Pin Center42.25″
  • Shpg.438 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width3.92″
  • Inside Width1.99″
  • Throat Depth8.07″
  • Pin Hole2.76″(70mm)
  • Base End Clevis
  • Outside Width5.51″
  • Inside Width2.75″
  • Throat Depth7.27″
  • Pin Hole2.76″(70mm)
