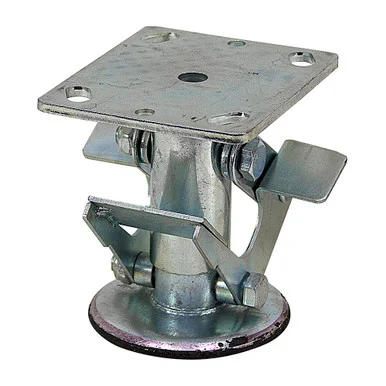

6″ Floor Lock For Use w/ 6″ Caster Wheel

Description

Product

6″ FLOOR LOCK
Brand New. Floor lock for use with plate caster with 6″ diameter wheel. 3-3/4″ diameter rubber disc on base is skid resistant.

Floor locks provide a foot activated braking option for equipment or carts with casters of similar heights. Spring loaded foot pedal is depressed to extend the rubber pad into a locked position to create a forceful resistance with the floor to immobilize the equipment. Releasing the lock allows the equipment to roll freely on the casters.Floor locks are not designed to be a jack and do not lift or directly support weight.

SPECIFICATIONS

• Extended Height 7-3/4″
• Retracted Height 6-3/4″
• Correlating Caster Wheel Size 6″
• Top Plate 4″ x 4-1/2″
• Foot Pad 3-3/4″
• Mount Four slotted holes from 3-5/8″ x 2-5/8″ to 3″ x 3″ centers
• Size 4-1/2″ x 5″ x 6-3/4″
• Shpg 4 lb.
