Sale!

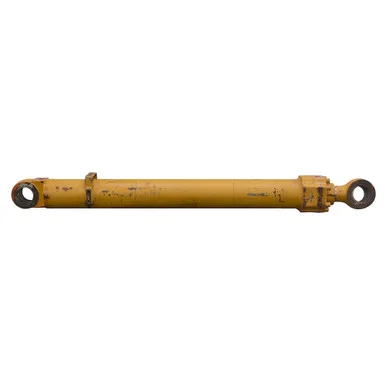

4.35″(110mm) x 40.31″(1024mm) x 2.76″(70mm) Double Acting Hydraulic Cylinder

4.35″(110mm) x 40.31″(1024mm) x 2.76″(70mm) Double Acting Hydraulic Cylinder

Original price was: $87.49.Current price is: $26.25.

SKU: IVJRV504044 Category:

Description

Product

4.35″(110mm) x 40.31″(1024mm) x 2.76″(70mm)DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder.


SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.35″(110mm) x 40.31″(1024mm)
  • Barrel Thickness 0.346″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 2.76″(70mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length56.75″
  • Gland Face to Rod Pin Center 4.5″
  • Shpg.258 lbs.

END MOUNTINGS
  • Rod End Tang
  • Width 3.54″
  • Pin-Center-To-Tang-End 2.67″
  • Pin Hole 2.76″(70mm)
  • Base End Tang
  • Width 3.54″
  • Pin-Center-To-Tang-End 2.51″
  • Pin Hole2.76″(70mm)
