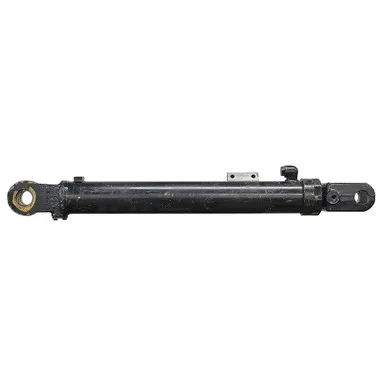

4″ x 28.75″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4″ x 28.75″
- Barrel Thickness 0.304″
- Gland Retainer Externally threaded
- Pressure 3000 PSI
- Rod Dia.2″
|
- Extend Port4 bolt 3/4″ code 61 flange size 12
- Retract Port SAE 12
- Retracted Length 46.625″
- Gland Face to Rod Pin Center5.25″
- Shpg.150 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 5.64″
- Inside Width 2.84
- Throat Depth 4.5″
- Pin Hole 2″
|
- Base End Tang
- Width 2.5″
- Pin-Center-To-Tang-End 2.58″
- Pin Hole2″
|
