4″ x 1.25″ Tente Swivel Plate Caster

Description

Product

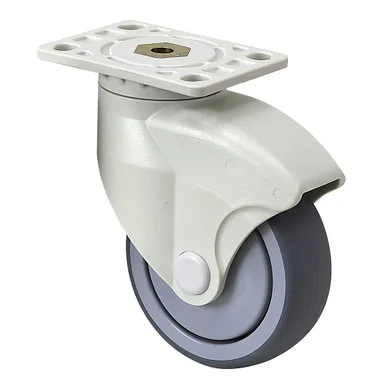

4″ x 1.25″ SWIVEL PLATE CASTER
New, TENTE swivel plate caster with threadguards. Double ball bearing in swivel head. Housing made of polyamide.

SPECIFICATIONS

• Wheel Diameter 4″ (3.94″)
• Wheel Width 1-1/4″ (1.18″) tread, 2-5/8″ total
• Load Capacity 220 lbs.
• Mounting Height 3-9/16″ (5.55″)
• Brake None
• Top Plate 3-3/4″ x 2-3/4″
• Mount 7/16″ center hole, Offset
• Bolt Holes Four 7/16″ wide slots on (1.75″-2.05″) x (2.83″-2.99″) centers
• Wheel Tread Material TENTEprene (Thermoplastic Rubber)
• Wheel Tread Color Grey
• Caster Wheel Core Material Polypropylene
• Caster Wheel Bearing Ball
• Shpg. 2 lbs.
