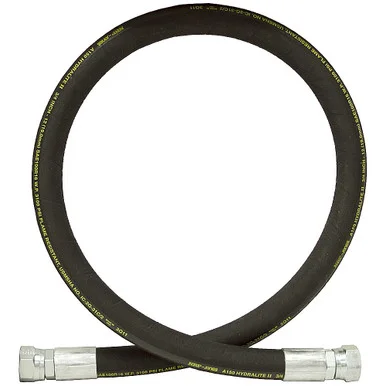

3/4″ X 36″ JIC 12F X JIC 12F 3000 PSI HYD HOSE
Brand new, double-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose TypeSAE 100R17 HydraLite I, Double-Wire Braided
- Overall Length36″
- Inside Hose Diameter3/4″
- Outside Jacket Diameter1.16″
- FittingsJIC 12F, Swivel
- Minimum Bend Radius4.75″
- Temperature Range-40° to 250°F
- Working Pressure3000 PSI
- Burst Pressure12000 PSI
- Shpg.3 Lbs.
