Description
Product

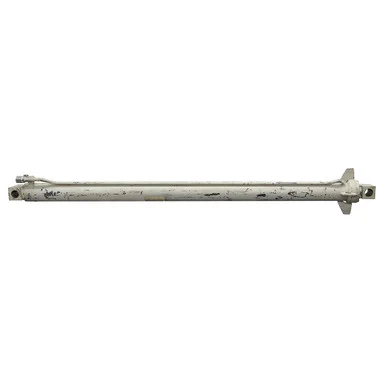

3.133″(80mm) x 59.032″(1500mm) x 1.772″(45mm) HYDRAULIC CYLINDER
Unused old inventory. TEREX 6500650000, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.133″(80mm) x 59.032″(1500mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 1.772″(45mm)
- Rod Thickness 1.772″(45mm)
|
- Ports 24° flareless fitting 20-L M30x2.0 metric parallel threads
- Retracted Length 69.25″
- Gland Face to Rod Pin Center 2″
- Shpg. 172 lbs.
|
| END MOUNTINGS |
- Rod End Cross-Block
- O.D.2.5″ x 2.5″
- Width3.152″
- Pin Hole1.576″(40mm)
|
- Base End Cross-Block
- O.D.2.5″ x 2.5″
- Width4.919″
- Pin Hole1.576″(40mm)
|
