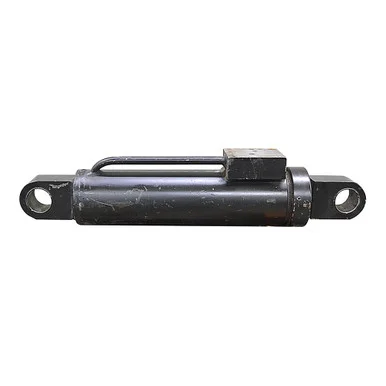

3″ x 8.5″ x 1.25″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped GI 3790 5984.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 8.5″
- Gland Retainer Externally threaded
- Pressure 2500 PSI max.
- Rod Dia. 1.25″
|
- Manifold Ports Two, 0.309″ dia. holes on 1.113″ centers
- Manifold Mount Four, 1/4″-20 TPI threaded holes on 2.705″ x 2.529″ centers
- Manifold Dimensions 3.5″ x 3″ x 1.5″
- Retracted Length 19.25″
- Gland Face to Rod Pin Center 2.5″
- Shpg. 38 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 1.81″
- Pin-Center-To-Tang-End1.283″
- Pin Hole1.5″
|
- Base End Tang
- Width 1.81″
- Pin-Center-To-Tang-End1.277″
- Pin Hole1.5″
|
