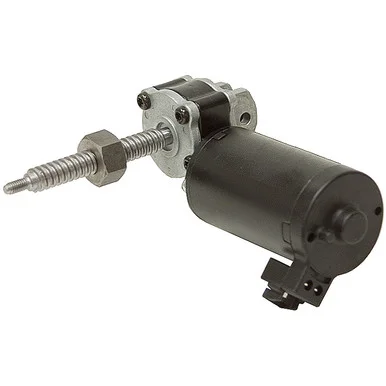

2.25″ Stroke 12 Volts DC Linear Actuator F681N – Left

Description

Product

12 VDC LINEAR ACTUATOR
New, linear actuator originally made for use in electric automotive seats. No clutch or limit switches. Permanent magnet type motor. Traveling nut has 7/8″ wrench flats. Output to left when viewed from motor end with output shaft above motor centerline.

SPECIFICATIONS

• Voltage 12 VDC
• Amps 1.5 no load
• Output Orientation LH
• Travel 2-1/4″
• Extension time6 seconds full travel
• Rotation reversible
• Enclosure Fully enclosed
• Duty Intermittant
• Mount 1/4″ clevis, 3/8″ between ears
• Shaft 7/16″-8 ACME thread w/M6x1 LH at end
• Overall size 6″ x 2-1/2″ x 5-1/2″
• Shpg. 3 lbs.
