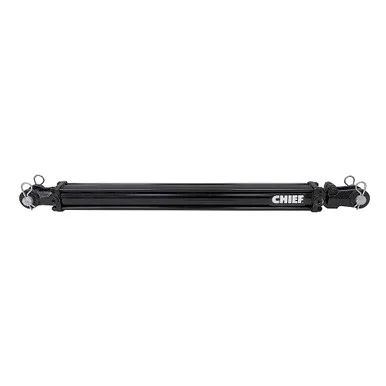

2″ x 18″ x 1.125″ Double Acting Hydraulic Cylinder Chief 211308

2″ x 18″ x 1.125″ Double Acting Hydraulic Cylinder Chief 211308

Original price was: $45.36.Current price is: $13.61.

SKU: IVJRV504107 Category:

Description

Product

CHIEF DOUBLE ACTING TIE-ROD CYLINDER
Brand new, Chief TC3 tie-rod hydraulic cylinder rated at 3000 PSI. TC3 cylinders are designed for use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. They provide outstanding performance and use clevis mounts for easy hookup. Featuring SAE O-ring ports for easy hookup every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.

SPECIFICATIONS
  • BrandChief
  • Model Number211308
  • TypeDouble-Acting
  • Bore x Stroke2″ x 18″
  • Pressure3000 PSI
  • Rod Dia.1.125″
  • Column Load8310 lbs.
  • PortsSAE 8
  • Retracted Length28.25″
  • Shpg.29 lbs.
END MOUNTINGS
  • Rod EndClevis
  • Outside Width2.5″
  • Inside Width1.17″
  • Throat Depth2.125″
  • Pin Hole1.00″
  • Base EndClevis
  • Outside Width2.5″
  • Inside Width1.17″
  • Throat Depth2.00″
  • Pin Hole1.00″
