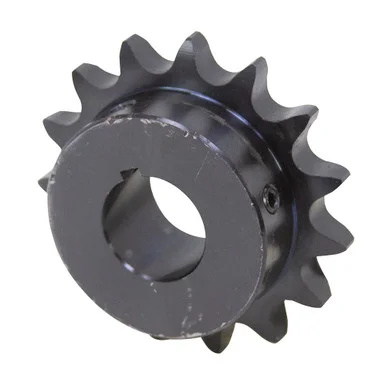

60 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 60 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch60
- Number of Teeth17
- Bore Size1-3/8″
- Model Number60BS17H-1-3/8
- Outside Diameter4.46″
- Hub Diameter3-1/4″
- Hub TypeB (Hub on one side)
- Length Through Bore1-1/4″
- Keyway Size5/16″ wide x 5/32″ depth
- Shpg.3 lbs.
