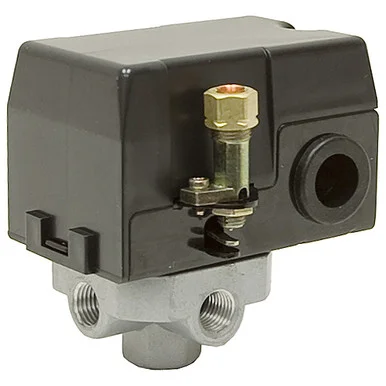

AUTOMATIC PRESSURE SWITCH
Brand new, LEFOO automatic pressure switch for compressed air systems. Automatically turns electric motor ON or OFF at set values. Adjustable differential. Unloader port 1/4″ OD copper tubing which allows compressor to start without back pressure load. Sturdy plastic housing. Manual off switch. Four port.
SPECIFICATIONS
- Contact Rating
1-1/2 HP, 20 amps @ 120 VAC
2 HP, 12 amps @ 240 VAC
3 HP, 9.6 amps @ 240 VAC 3PH
1/4 HP, 8.6 amps @ 32 VDC
1/4 HP, 3.1 amps @ 120 VDC
1/4 HP, 1.6 amps @ 240 VDC - Port 1/4″ NPT (x4)
- Factory Setting
ON (Cut-In) 140 PSI
OFF (Cut-Out) 175 PSI - Minimum ON (Cut-in) 50 PSI
- Maximum OFF (Cut-Out) 175 PSI
- Differential35-55 PSI
- Size3-3/4″ x 3-3/8″ x 3-1/4″
- Shpg. 1-1/2 lbs.
