Description
Product

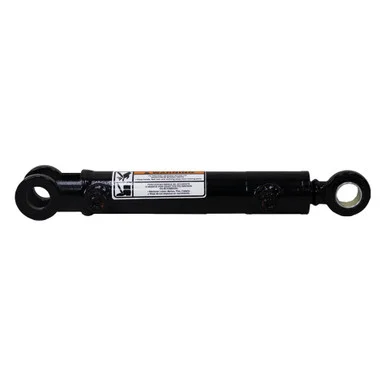

1.5″ x 6″ x 1″ DOUBLE-ACTING HYDRAULIC CYLINDER
New Bailey 321-633 welded double acting hydraulic cylinder. Pins not included.
| SPECIFICATIONS |
- BrandBailey
- Model Number321-633
- Double Acting
- Bore x Stroke1.5″ x 6″
- Gland RetainerThreaded In
- Pressure3000 PSI max.
|
- Rod Dia.1″
- Ports1/4″ NPT
- Retracted Length13.25″
- Gland Face to Rod Pin Center1.7″
- Shpg.9 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width0.62″
- Pin-Center-To-Swivel Eye-End0.95″
- Swivel Eye Width0.78″
- Pin Hole1″
|
- Base EndClevis
- Outside Width2.06″
- Inside Width1.187″
- Throat Depth1.75″
- Pin Hole1″
|
