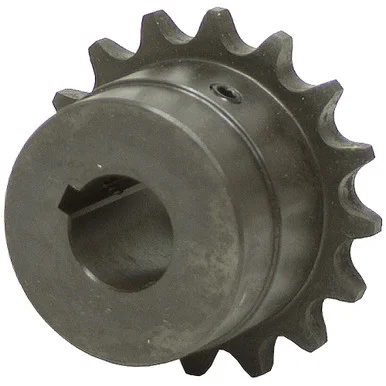

DOUBLE ROLLER CHAIN COUPLER SPROCKET HALF
Brand new. Double roller chain coupler sprocket half. Three piece chain coupler consist of two sprockets connected together with double roller chain. Sold as individual halves and chain. Purchase two halves and one coupler chain to make a complete coupling. For reversing operation, shock, pulsating loads or other severe operating conditions select the next larger coupling size. Furnished with standard keyway and setscrew.
SPECIFICATIONS
- Pitch 60
- Sprocket Teeth 18
- Bore 1-1/8″ dia. w/ 1/4″ keyway
- Max. Speed 3000 RPM
- Max. Torque 407.5 ft.-lbs.
- Max. HP @ Speed 194.5 HP @ 2500 RPM
- Size 5″ dia. x 2.43″
- Shpg. 7 lbs.
| Chain Coupling Options. This item requires two sprock halves and one chain. Chain cover optional | |
|---|---|
| 1″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602854 |
| 1-1/4″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602856 |
| 1-3/8″ Bore Coupler Sprocker 60 Pitch 18 Tooth | 602857 |
| 1-1/2″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602858 |
| 1-5/8″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602859 |
| 1-15/16″ Bore Coupler Sprocker 60 Pitch 18 Tooth | 602860 |
| 2″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602861 |
| 2-1/8″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602862 |
| 2-3/8″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602863 |
| 2-7/16″ Bore Coupler Sprocket 60 Pitch 18 Tooth | 602864 |
| Coupler Chain and Cover for Chain Coupler | |
| 60 Pitch 18 Tooth Coupler Chain | 602865 |
| 60 Pitch 18 Tooth Coupling Cover | 602866 |
