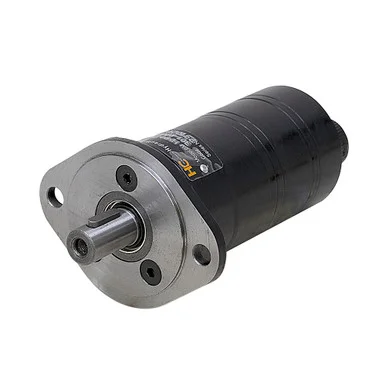

0.76 cu in Hydraulic Motor Hydro Custom BMM-ABCBBAA

Description

Product

0.48 cu in HYDRO CUSTOM BMM-ABCBBAA HYDRAULIC MOTOR
Brand new Hydro Custom BMM series hydraulic motor. Interchangeable with Char-Lynn J series. Gerolor power element.
SPECIFICATIONS

• BrandHydro Custom
• ModelBMM-ABCBBAA
• Manufacturer Part NumberCUM 301-0061E
• Displacement0.76 cu in
• Motor TypeGerolor
• RotationReversible
• Pressure
  1450 PSI cont.
  2030 PSI int.
• Torque
  141 in-lbs. cont.
  203 in-lbs. int.
• Speed
  1550 RPM cont.
  1940 RPM int.
• Flow
  5.2 GPM cont.
  6.6 GPM int.
• MountTwo 0.35″ bolt holes on 3.150″ centers, 2.48″ O.D. pilot
• Shaft5/8″ x 1.102″ long Keyed, w/0.188″ parallel key, end tapped 1/4″-28
• PortsSAE 6, rear
• Case DrainSAE 3, rear
• Size5.82″ x 2.362″ x 2.44″
• Shpg.5 lbs.
